From Blueprint to Batch Production｜A Case of Precision Wear Part Customization

Customer Background & Challenges

KYC Corporation is a renowned Japanese manufacturer of concrete mixing equipment, widely used in infrastructure projects across Asia. Known for their compact structure and strict technical standards, KYC required mixer arms with exceptional wear resistance, precise fitment, and non-standard structure compatibility.

In late 2024, KYC approached Haitian Heavy Industry with three urgent issues:

💥 Excessive wear rate: The original mixer arms required replacement every 1.5 months, disrupting production.

🔩 Non-compatible generic parts: The unique configuration of KYC’s mixing drum made standard arms unusable.

🇯🇵 Local customization too costly and slow: Japanese local suppliers offered high costs and delivery times of over 30 days.

KYC needed a reliable supplier capable of providing fast, precise, and durable custom mixer arm solutions.

Haitian’s Tailored Solution

Upon receiving the technical drawings and photos, Haitian’s engineering and materials team began a full assessment and proposed a customized solution:

📐 Engineering Evaluation: Analyzed 2D CAD files and actual equipment photos to identify key dimensions, bolt positions, and tolerance limits.

💎 Dual-Material Proposal:

For general impact resistance, we suggested ZGMn13 high manganese steel with self-hardening properties.

For high-friction areas, we recommended ZG-12 alloy steel, offering higher hardness and stable wear resistance under constant mixing.

🔄 Prototype + Field Testing: We provided both material samples. After comparison in real production, the customer selected ZG-12 for the final product due to its longer lifespan.

Manufacturing Process & Technical Highlights

To ensure product accuracy, consistency, and durability, Haitian adopted a fully automated and quality-controlled production process:

Material Melting: ZG-12 and ZGMn13 melted using a medium-frequency induction furnace, with in-line spectrometer analysis.

🏗️ Automatic Molding & Pouring: DISA vertical molding line ensured compact structure and consistent internal quality.

🔥 Heat Treatment:

ZG-12: Oil quenching + low-temperature tempering (HRC 48–52).

ZGMn13: Water quenching + aging treatment to enhance toughness.

⚙️ CNC Precision Machining: 5-axis machining for all critical surfaces, maintaining tolerances within ±0.05 mm.

🧪 Full Quality Inspection: Including MT flaw detection, hardness tests, metallography, 3D coordinate measurement, and trial assembly simulation.

Final Product Performance & Results

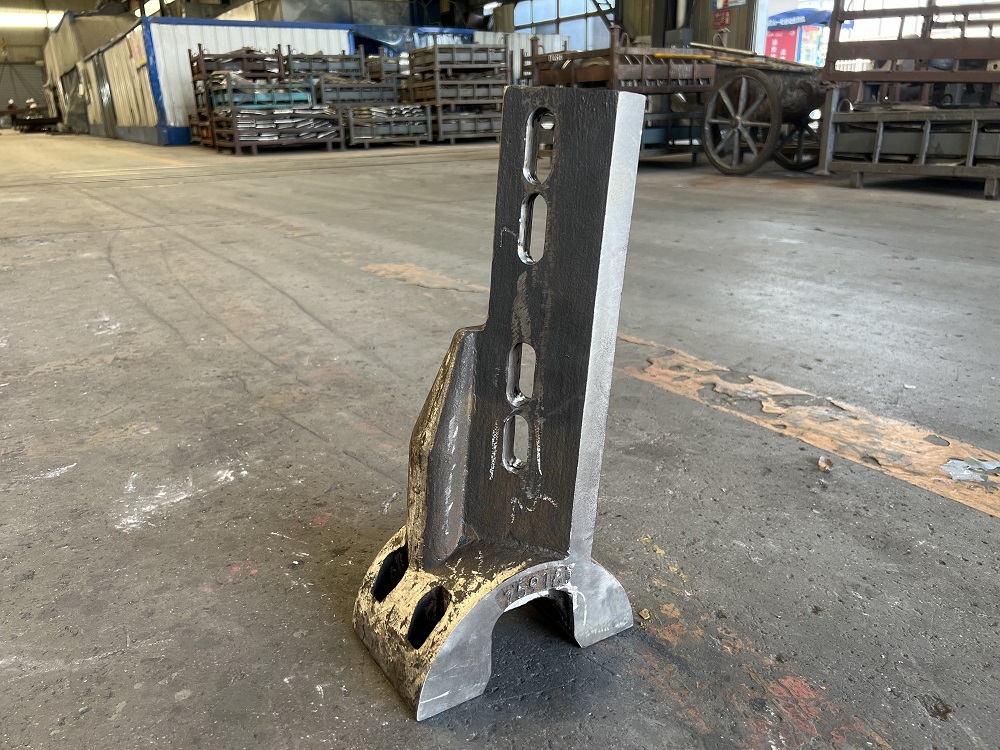

The final ZG-12 mixer arms delivered outstanding results:

✅ Perfect Fit: Fully matched KYC’s mounting dimensions and structure, allowing quick installation without modifications.

✅ Extended Service Life: In 24/7 mixing operation, lifespan increased by over 2.5× compared to the original part.

✅ Anti-Cracking & Impact Resistance: Strengthened root section prevented early failure.

✅ Excellent Finish: Clean surface, no flash or burrs, finished to Japanese industry standards.

Customer Feedback & Ongoing Partnership

One month after implementation, KYC’s project manager provided positive feedback:

“The mixer arm fits our equipment perfectly and shows impressive wear resistance. Haitian demonstrated outstanding technical expertise and fast response. We’re looking forward to deeper collaboration.”

KYC has since placed follow-up orders and invited Haitian to participate in the optimization of other mixer components. We are now listed as their official supplier for wear parts in their concrete mixing equipment line.

This case highlights Haitian Heavy Industry’s capabilities in delivering custom wear parts through engineering precision, material expertise, and full-process quality control. Whether you're dealing with non-standard equipment or high wear rates, Haitian can provide a one-stop solution from drawing analysis to bulk delivery.
