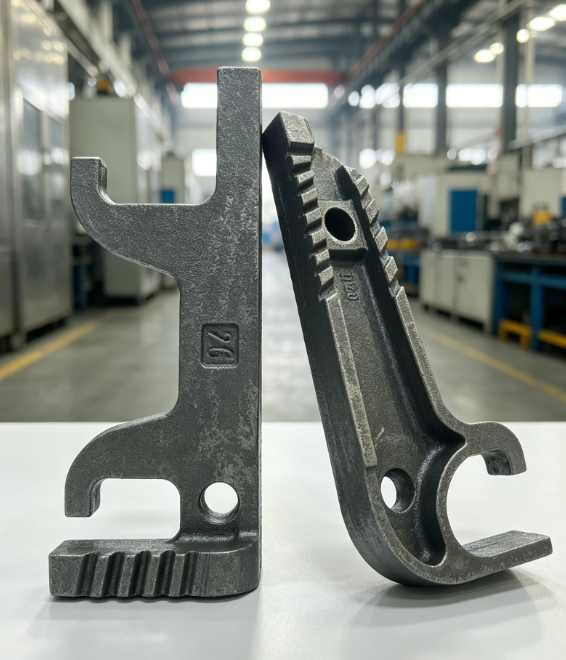

HAITIAN CASTING Provides High-Performance Grate Bar Solutions for Sintering Machines

1. Customer Case Background

South African Mining Customer: Solving Short Service Life and Long Supply Cycle Issues of Grate Bars

A mining customer from South Africa has been engaged in mining equipment operation and maintenance for many years, with strict requirements for the reliability and service life of key wear-resistant components of sintering machines, especially Grate Bars.

During actual production, the customer had its own smelting system. However, due to limitations in material performance and manufacturing processes, the existing grate bars faced several challenges during operation:

· Insufficient wear resistance and short service life;

· Accelerated wear and damage under high-temperature and high-impact working conditions;

· Long spare parts supply cycles, affecting continuous equipment operation.

Under the customer’s previous supply model, it took approximately 3 weeks to produce 4,500 pieces of grate bars, which could not fully meet the requirements for continuous operation and spare parts inventory.

To solve these challenges, the customer was looking for a supplier with advanced wear-resistant material technology, efficient production capabilities, and fast delivery capability to optimize grate bar performance and improve supply efficiency.

Based on the customer’s operating conditions, wear mechanisms, and supply requirements, HAITIAN CASTING’s technical team conducted a comprehensive analysis from multiple aspects, including material system design, casting process optimization, production efficiency, and delivery capability, providing a complete grate bar solution.

Spanish Customer: Large-Volume Grate Bar Supply Project

In addition to the South African customer project, HAITIAN CASTING has also provided grate bar products for a Spanish customer.

To meet the customer’s large-volume spare parts requirements, HAITIAN leveraged its automated casting production capabilities to achieve efficient production and rapid delivery of approximately 20,000 pieces of grate bars in a single batch, meeting the customer’s requirements for stable supply capacity and delivery time.

Through accumulated project experience with customers from different countries, HAITIAN CASTING continuously optimizes grate bar material systems, manufacturing processes, and production management procedures to provide more stable and efficient wear-resistant solutions for overseas customers.

2. Analysis of Customer Requirements

For the South African customer project, the main requirements included:

· Improving grate bar wear resistance and extending service life;

· Enhancing stability under high-temperature and impact conditions;

· Reducing spare parts replacement frequency and maintenance costs;

· Shortening production cycles and improving supply efficiency;

· Ensuring dimensional consistency and stable performance in mass production.

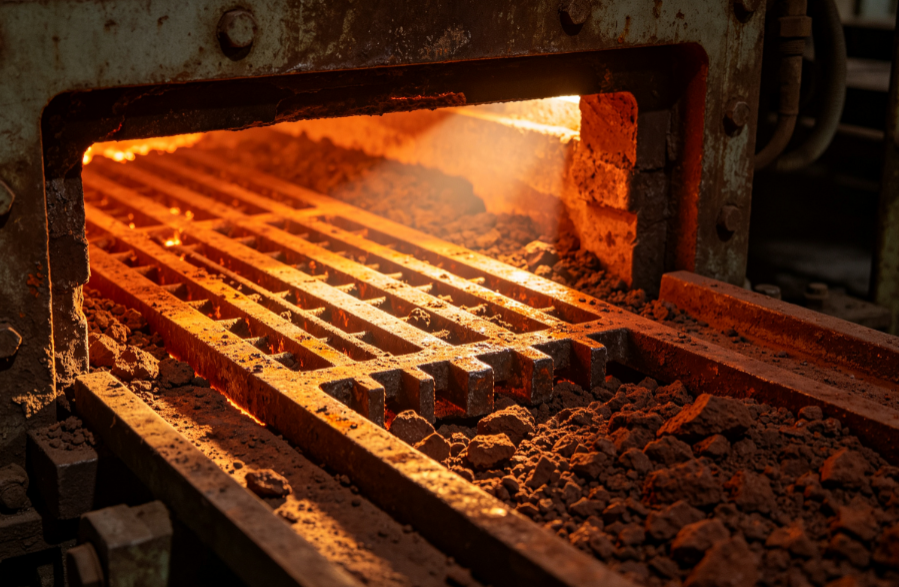

Grate bars operate under high-temperature, high-impact, and severe wear conditions for extended periods. Their performance cannot be achieved simply by increasing hardness. A comprehensive balance is required among:

· Wear resistance;

· Impact toughness;

· High-temperature stability;

· Internal structural uniformity;

· Long-term operational reliability.

Based on the customer’s actual requirements, HAITIAN CASTING provided an integrated solution covering material design, manufacturing process optimization, and supply efficiency improvement.

3. HAITIAN CASTING’s Grate Bar Solutions

Optimized Wear-Resistant Material System to Improve Service Life

To address the short service life of the customer’s original products, HAITIAN CASTING adopted a high-performance wear-resistant alloy material system and optimized alloy element ratios to improve the overall performance of grate bars.

Through material system optimization, the grate bars achieve:

· Higher wear resistance;

· Better impact resistance;

· More stable high-temperature performance;

· Approximately 20% longer service life.

Compared with traditional material solutions, HAITIAN CASTING applies optimized material design and manufacturing process control to effectively reduce maintenance costs caused by frequent spare parts replacement.

4. High-Efficiency Manufacturing Capability to Shorten Delivery Time

To solve the customer’s concerns regarding long delivery cycles, HAITIAN CASTING utilizes an automated production system to provide rapid manufacturing and delivery capabilities.

Advantages of HAITIAN’s DISA Automated Casting Line

By using the DISA automated casting production line, HAITIAN achieves:

· High-efficiency continuous production;

· Stable product dimensional consistency;

· Rapid manufacturing for large-volume orders;

· Reduced human operation errors.

Compared with the customer’s previous supply model:

· Previous supplier: Approximately 4,500 pieces produced in 3 weeks;

· HAITIAN CASTING: Approximately 50,000 pieces of grate bars can be produced within 3 weeks.

The high-efficiency production capability helps customers establish a more stable spare parts supply system and reduce equipment downtime risks caused by delayed part availability.

5. Rapid Prototyping with 3D Printing to Accelerate Product Validation

To help customers quickly verify product performance, HAITIAN CASTING utilizes 3D printing technology for rapid sample development.

During the project:

· Product models were optimized according to customer requirements;

· Samples were quickly manufactured using 3D printing technology;

· Samples were completed and delivered to the customer site for testing within one week.

Through rapid prototyping, HAITIAN significantly reduces the traditional mold development cycle, allowing customers to verify product design and performance more efficiently.

After on-site testing, the customer confirmed that the sample dimensions matched the equipment requirements and the product quality met application expectations, providing a foundation for future mass production supply.

6. Complete Manufacturing Process Ensures Product Performance

6.1 Precise Melting and Chemical Composition Control

Stable grate bar performance starts with strict material control.

During production, HAITIAN CASTING strictly manages:

· Raw material quality;

· Alloy element ratios;

· Furnace-side spectrum testing;

· Melting temperature and process parameters.

This ensures that the chemical composition of each batch meets product technical requirements.

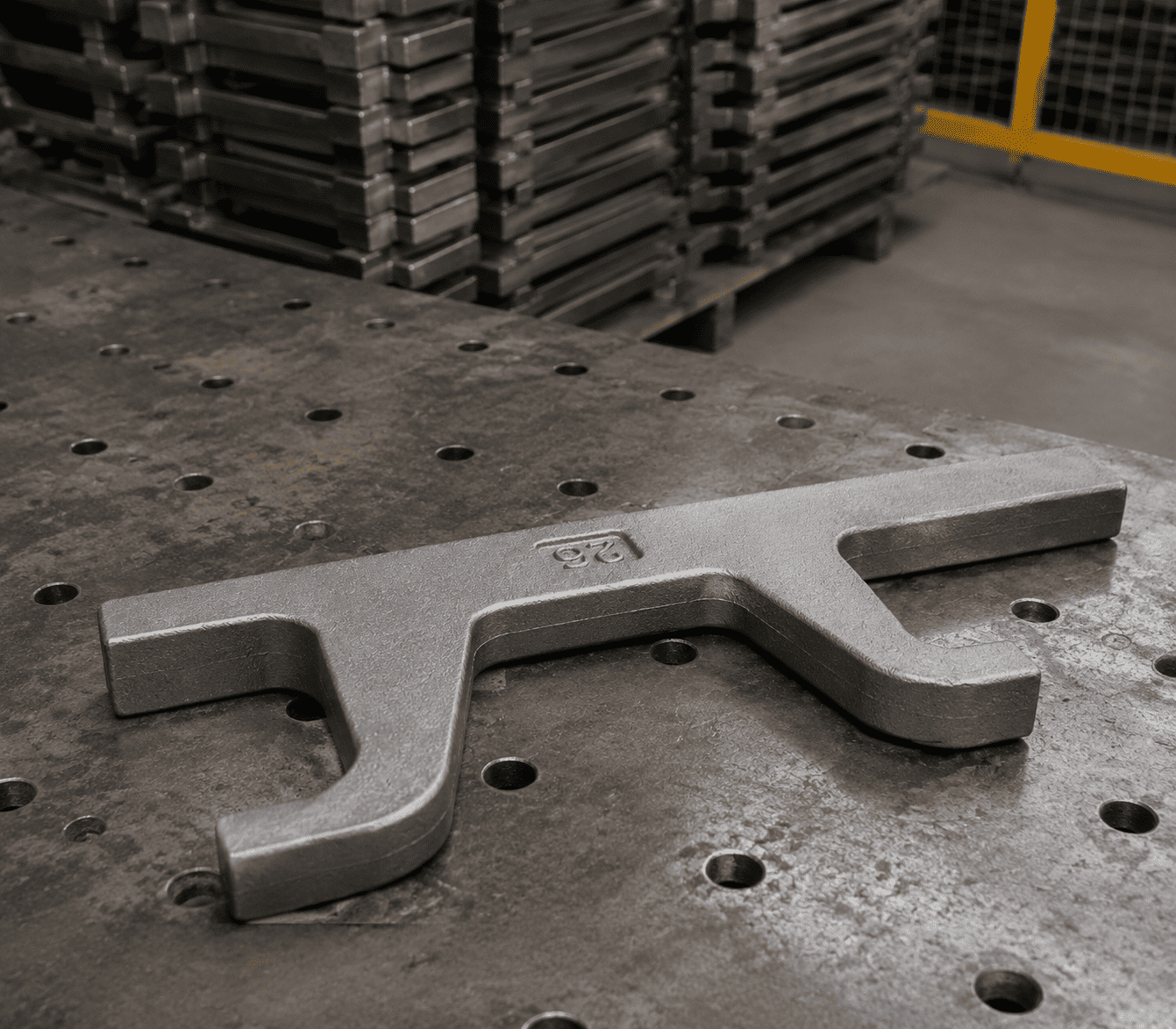

6.2 Precision Casting Process

Considering the complex structure of grate bars, HAITIAN optimizes the casting process to control:

· Product dimensional accuracy;

· Internal structural density;

· Risks of defects such as porosity and shrinkage;

· Batch-to-batch consistency.

This ensures that products meet equipment installation requirements and long-term operating conditions.

6.3 Heat Treatment Strengthening Process

Through customized heat treatment procedures, HAITIAN optimizes the internal structure of the material.

Key parameters include:

· Heating temperature;

· Holding time;

· Quenching process;

· Cooling parameters;

· Tempering process.

The optimized heat treatment process enables grate bars to achieve a balanced combination of hardness, toughness, and wear resistance.

7. Project Summary

Based on different customer requirements, HAITIAN CASTING provides:

· High-performance wear-resistant material solutions;

· Fast-response manufacturing capabilities;

· High-efficiency DISA automated casting production;

· Rapid prototyping and validation services through 3D printing;

· Comprehensive quality control systems.

Through the integrated approach of “Material Optimization + Process Improvement + Efficient Manufacturing + Fast Delivery”, HAITIAN CASTING helps overseas customers improve equipment reliability, reduce maintenance costs, and obtain more reliable grate bar wear-resistant solutions.
