Mining Grinding Balls Case Study

1. Project Overview

This case study presents a real application of mining grinding balls in a large-scale copper ore processing plant in South America.

The customer operates a medium-hard copper ore beneficiation plant using a conventional ball mill grinding circuit.

 Project Information:

Location: South America

Ore type: Copper ore (medium hardness)

Equipment: Ball Mill

Capacity: 120 tons per hour

Original grinding media: Low chrome cast balls (3%–5% Cr)

2. Initial Operating Challenges

Before optimization, the plant was facing several serious production issues:

❌ 1. High Grinding Media Wear Rate

Wear consumption: 1.2 kg per ton of ore

Frequent replenishment required

Increased operational cost

❌ 2. High Breakage Rate of Grinding Balls

Breakage rate: >1.5%

Caused contamination in slurry

Increased liner impact damage risk

❌ 3. Low Grinding Efficiency

Poor energy utilization in mill

Inconsistent particle size distribution (P80 instability)

Reduced downstream flotation efficiency

❌ 4. Unbalanced Ball Charge Distribution

Insufficient large ball ratio

Weak impact force in coarse grinding stage

Excessive circulating load

3. Engineering Analysis Performed

Our technical team conducted a full grinding circuit evaluation, including:

Mill operating speed (% critical speed)

Ball filling ratio

Feed size distribution (F80)

Product size target (P80)

Ore hardness (Bond Work Index)

4. Root Cause Identification

After technical evaluation, the main issues were identified as:

 1. Low alloy performance grinding media

Low chromium content → poor wear resistance

Rapid surface degradation

 2. Incorrect ball size distribution

Insufficient impact energy in coarse crushing zone

Over-grinding in fine grinding stage

3. Inefficient energy transfer

Low grinding media hardness consistency

Suboptimal heat treatment quality

5. Implemented Improvement Measures

1. Grinding Media Upgrade

The original low chrome balls were replaced with:

👉 High Chrome Grinding Balls (18% Cr)

Technical specifications:

Hardness: 60–64 HRC

Impact toughness: ≥ 3.5 J/cm²

Wear rate target: ≤ 0.7 kg/t

Breakage rate: ≤ 0.5%

 2. Ball Charge Optimization

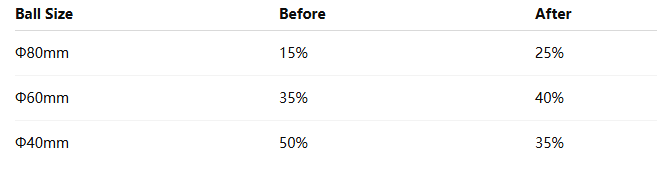

We redesigned the grinding media distribution
👉 Increased impact efficiency in coarse grinding stage

 3. Heat Treatment Optimization

Controlled quenching process

Uniform hardness distribution

Reduced internal stress concentration

 4. Make-up Ball Strategy Adjustment

Dynamic replenishment system introduced

Optimized wear compensation cycle

Balanced size distribution over time

6. Performance Results After Optimization

After 2 months of operation, the plant reported significant improvements:

Wear Reduction

From 1.2 kg/t → 0.75 kg/t   👉 37% reduction in grinding media consumption

Throughput Increase

From 120 t/h → 135 t/h   👉 +12.5% production increase

Energy Efficiency Improvement

Power consumption reduced by ~10%

Breakage Rate Reduction

From 1.5% → 0.4%    👉 73% improvement in stability

Process Stability

More stable P80 particle size

Reduced circulating load

Improved flotation performance downstream

7. Customer Feedback

“After switching to high chrome grinding balls and optimizing the ball charge design, our mill performance became significantly more stable. We achieved both cost reduction and production increase at the same time.”

8. Key Engineering Insights

This case demonstrates that grinding efficiency is not determined by a single factor, but by the interaction of:

Material composition (Alloy design)

Heat treatment quality

Ball size distribution

Mill operating conditions

Ore characteristics

👉 The key to optimization is system-level engineering, not product replacement alone.

9. Application Scope

This grinding media optimization approach is widely applicable to:

Copper ore processing plants

Gold mining operations

Iron ore beneficiation plants

Cement grinding systems

Non-metallic mineral processing

10. Conclusion

This case study highlights a critical fact in modern mining operations:

👉 Grinding media is not just a consumable — it is a performance engineering component of the entire grinding circuit.

By upgrading grinding balls and optimizing the ball charge system, mining plants can achieve:

✔ Lower operating cost
✔ Higher production output
✔ Improved energy efficiency
✔ More stable plant performance
