Cone Crusher Liners: How to Select and When to Change

Cone crushers are essential machines in the mining, quarrying, and aggregate industries. They provide efficient size reduction by crushing materials between a moving mantle and a stationary bowl liner. While the cone crusher itself is a robust piece of equipment, its performance largely depends on one critical component: the liners. Choosing the right liners and knowing when to replace them can significantly impact productivity, efficiency, and cost.

What Are Cone Crusher Liners?

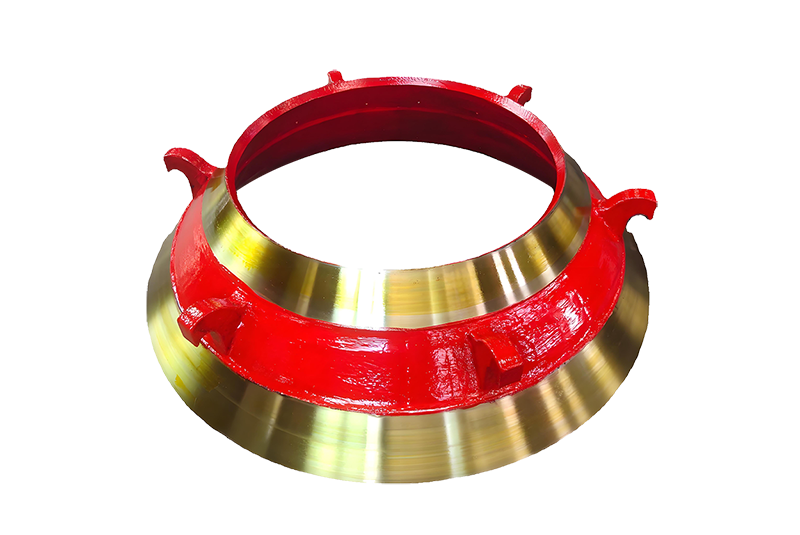

Cone crusher liners are wear parts installed on the cone crusher’s mantle and bowl. These liners are designed to withstand constant impact and abrasive forces from crushed material. The primary role of these liners is to protect the main crusher components and ensure proper material reduction.

Liners are typically made from manganese steel or wear-resistant alloy steels. Their durability and effectiveness directly influence the crusher’s capacity, output quality, and lifespan.

How to Select the Right Cone Crusher Liners

1. Understand Your Application

Material characteristics greatly influence liner selection. Factors such as feed size, hardness, abrasiveness, and moisture content must be considered. For example, hard rock applications require tougher liner materials, while softer rock may benefit from liners optimized for throughput.

2. Choose the Right Liner Profile

Liner profiles come in a range of designs—standard, medium, and short head—each suited for different crushing stages. The profile determines the crushing chamber's shape, impacting the product size and throughput. Proper liner selection ensures efficient crushing and better particle shape.

3. Material Composition Considerations

Manganese steel is a common choice for cone crusher liners due to its work-hardening properties. However, various grades (such as 14%, 18%, and 21% manganese) offer different levels of wear resistance. Specialized applications may call for hybrid materials or high-chrome options.

You may be interested in this article: Does the Grade of Manganese Steel Affect Crusher Liner Performance?

4. Crushing Chamber Compatibility

It's vital to match liners to the crusher’s chamber design to avoid uneven wear, reduced output, and equipment damage. Consulting with manufacturers helps ensure optimal chamber-liner compatibility.

5. Manufacturer Support and Customization

Working with experienced manufacturers like HAITIAN HEAVY INDUSTRI can provide access to custom-designed liners tailored to specific operating conditions. OEM and ODM support ensures reliable fit, material quality, and performance.

Signs It’s Time to Change Cone Crusher Liners

1. Excessive Wear

Liners wear out over time and lose their protective properties. Monitoring liner thickness and comparing it to manufacturer-recommended minimums helps prevent damage to internal crusher components.

2. Reduced Throughput and Product Quality

If output drops or the product becomes inconsistent in size or shape, worn liners may be the cause. Replacing them can restore efficiency and consistency.

3. Power Draw Changes

A noticeable increase in power consumption may indicate inefficient crushing due to liner wear or mismatch. This can also lead to increased operational costs.

4. Visual Cracks or Deformation

Visible damage or cracks in liners are clear signs that replacement is overdue. Continued use risks catastrophic equipment failure.

5. Run Time or Tonnes Processed

Each liner has an expected wear life, often measured in operating hours or tonnes of material processed. Sticking to scheduled replacements based on historical data prevents unscheduled downtime.

Best Practices for Extending Liner Life

Maintain proper feed distribution and avoid overloading

Monitor wear using tools or liner wear sensors

Choose liners suited for your exact material type and production needs

Partner with reliable manufacturers for durable, quality products

Benefits of Timely Liner Replacement

Maximizes crusher efficiency and throughput

Prevents unplanned breakdowns and costly downtime

Maintains consistent, high-quality product

Protects expensive internal components from wear and damage

Conclusion

Cone crusher liners are not just wear parts—they're key to crusher performance and profitability. By understanding how to select the right liner and when to replace it, operators can achieve longer wear life, better production efficiency, and reduced maintenance costs.

At HAITIAN CASTING, we specialize in producing high-performance cone crusher wear parts using advanced casting technologies and wear-resistant alloys. Whether you need standard liners or custom-designed solutions, HAITIAN HEAVY INDUSTRI is your trusted partner in wear parts manufacturing—helping you crush with confidence.
