Crusher Blow Bars: The Complete Guide to Selection, Materials, and Performance Optimization

Understanding Crusher Blow Bars: Essential Components for Impact Crushing

Crusher blow bars are thick, precision-engineered metal components that serve as the primary impact elements in horizontal shaft impact (HSI) crushers. These critical wear parts are mounted on the crusher rotor and rotate at high speeds to strike incoming material, breaking it down through forceful impact rather than compression. The effectiveness of your crushing operation depends heavily on selecting the right blow bar material and maintaining proper replacement schedules.

Modern blow bars are manufactured from specialized alloys designed to withstand extreme forces while maintaining dimensional stability throughout their service life. Understanding the relationship between material composition, application requirements, and operational parameters is essential for maximizing productivity and minimizing downtime in any crushing operation.

Blow Bar Material Types and Metallurgical Properties

High Manganese Steel Blow Bars

High manganese steel blow bars contain 12-14% or 18% manganese content and are renowned for their exceptional toughness and work-hardening characteristics. When subjected to impact forces during crushing operations, the surface layer undergoes a metallurgical transformation that increases hardness while maintaining a flexible, impact-resistant core. This unique property makes manganese steel particularly effective in primary crushing applications where large feed sizes and potential contamination with tramp iron are common concerns.

The work-hardening mechanism occurs when the crystalline structure of the manganese steel deforms under impact, creating increased resistance to subsequent impacts. High manganese blow bars typically achieve hardness levels between 200-240 HB initially, which can increase to 450-500 HB in the work-hardened surface layer.

Chrome Steel Blow Bars

High chrome blow bars contain 25-28% chromium and deliver superior abrasion resistance through the formation of hard chromium carbides within the metal matrix. These bars excel in crushing highly abrasive materials like natural stone and asphalt but exhibit increased brittleness compared to other materials. High chrome blow bars typically achieve hardness levels of 60-64 HRC and require careful feed size control to prevent fracturing.

Medium chrome blow bars offer versatile performance across multiple applications including concrete, sand and gravel, asphalt, dolomite, aggregate, and limestone crushing. This metallurgy provides balanced wear resistance and impact strength, making it suitable for operations that process various material types with the same equipment.

Low chrome blow bars prioritize impact resistance over abrasion resistance, making them ideal for concrete recycling and demolition debris processing where metal contaminants like rebar are present. The reduced chrome content allows these bars to flex under impact rather than fracture, and they can handle larger feed sizes more effectively than high chrome alternatives.

Martensitic Steel and Composite Blow Bars

Martensitic steel blow bars provide moderate hardness (approximately 60 HRC) with improved toughness compared to high chrome options. These bars are commonly used in limestone crushing and other applications requiring easy replacement and moderate wear resistance.

Composite blow bars featuring ceramic inserts represent advanced wear technology, combining the impact resistance of martensitic or chrome steel bases with the exceptional abrasion resistance of ceramic materials. These hybrid designs can achieve service lives three to five times longer than standard martensitic steel in appropriate applications.

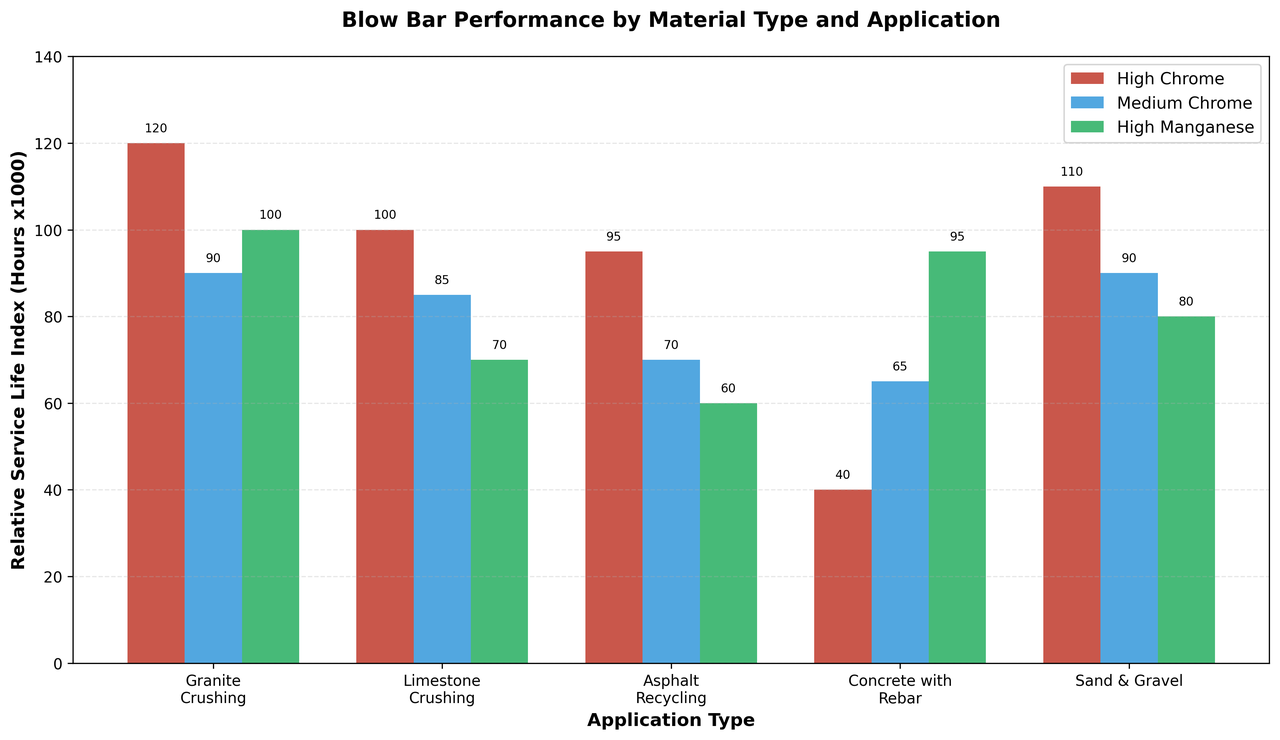

Application-Specific Blow Bar Selection Guide

Blow Bar Design Configurations and Their Impact

Straight Blow Bars

Straight blow bars feature uniform rectangular cross-sections and are the most common design for general crushing applications. They offer simplified installation, easy rotation for extended wear life, and straightforward replacement procedures. Straight bars are particularly suitable for secondary crushing operations and materials that don't require enhanced penetration characteristics.

Curved and Wing-Tip Blow Bars

Curved blow bars and wing-tip designs incorporate extended or angled striking surfaces that improve material penetration and impact distribution. The wing-tip configuration concentrates impact forces at specific points, enhancing crushing efficiency in primary applications processing large feed material. However, these extended tips experience accelerated wear and may require more frequent replacement compared to straight bars.

Solid vs. Segmented Construction

Solid blow bars provide maximum durability and resistance to breakage through their continuous construction. While heavier and potentially inducing greater stress on crusher components, solid bars excel in high-impact applications. Segmented or modular blow bar designs allow for replacement of worn sections without replacing the entire bar, offering potential cost savings in specific operational scenarios.

Critical Wear Factors and Service Life Optimization

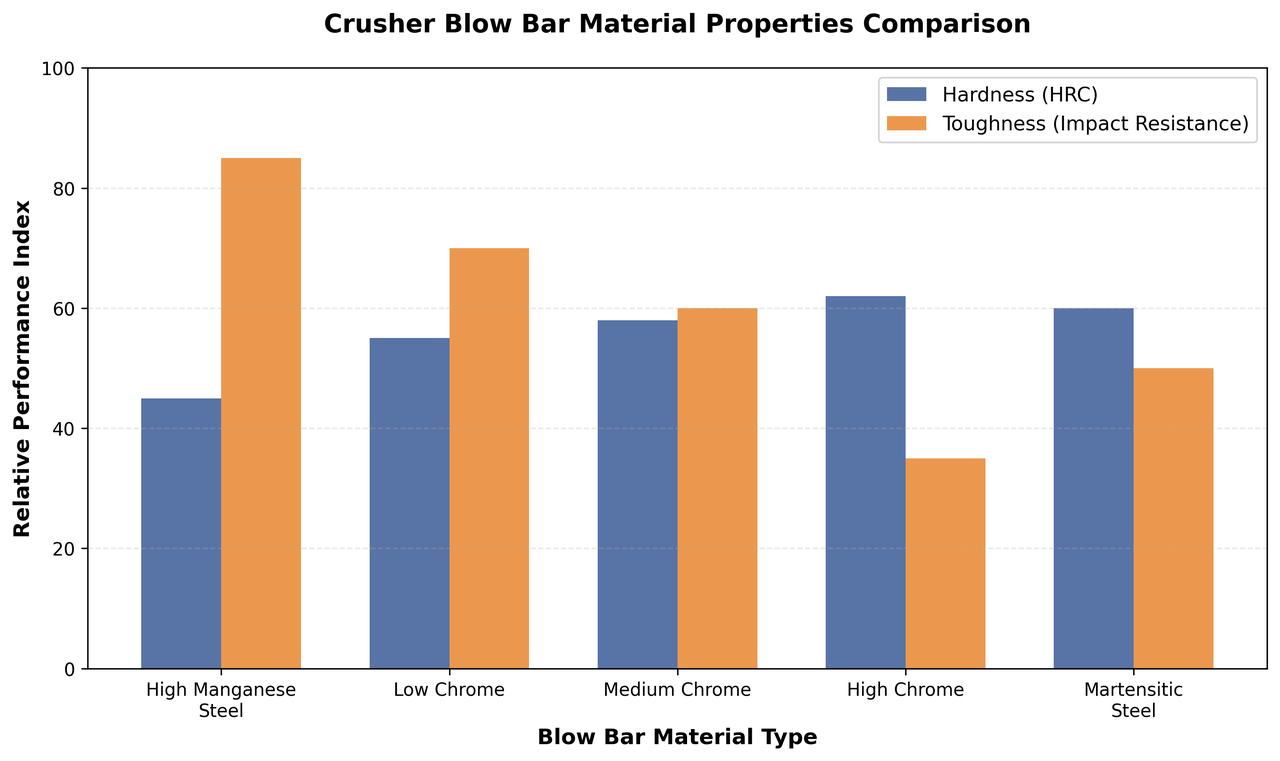

Material Properties Relationship

The fundamental relationship between hardness and toughness creates an inherent trade-off in blow bar selection. As hardness increases (improving wear resistance), toughness generally decreases (reducing impact resistance). Understanding this inverse relationship is crucial for matching blow bar metallurgy to application requirements.

Feed material characteristics significantly influence blow bar wear patterns. Abrasive materials like granite and basalt cause primarily abrasive wear, favoring harder blow bar materials. Conversely, materials containing metal contaminants or requiring large feed size capacity demand tougher, more impact-resistant metallurgies.

Operational Parameters

Rotor speed directly affects impact forces and consequently wear rates. Higher rotor speeds increase material throughput but accelerate blow bar wear. Feed size management is particularly critical for high chrome blow bars, which can fracture when subjected to repeated impacts from oversized material.

Comprehensive Blow Bar Maintenance Strategies

Daily Inspection Procedures

Visual inspection through the crusher's access hatch reveals blow bar wear progression and potential issues. Operators should assess remaining material thickness, check for cracks or fractures, and monitor for unusual wear patterns that might indicate rotor imbalance or feed distribution problems.

Scheduled Maintenance Protocols

Replacement Timing Criteria

The critical decision point for blow bar replacement typically occurs when wear reaches 70% of acceptable limits. Delaying replacement beyond this threshold risks damaging the rotor body, which represents a significantly more expensive repair than timely blow bar replacement. Material being crushed can erode the rotor surface if blow bars wear too low, potentially requiring rotor rebuilding or replacement.

When replacing blow bars, many operations simultaneously replace other wear components like liners if they show substantial wear. This integrated approach minimizes shutdown frequency and maximizes productive operating time.

Cost-Effectiveness and Total Ownership Analysis

Initial Investment vs. Service Life

While high-performance materials like ceramic composite blow bars command premium prices, their extended service life often delivers lower cost-per-ton processed. A comprehensive total cost analysis should include:

• Initial blow bar purchase price

• Installation labor and downtime costs

• Expected service life in specific application

• Rotor and other component wear impacts

• Production lost during replacement shutdowns

Strategic Blow Bar Configuration

Some crushing operations optimize costs by using partial blow bar configurations. For example, using two active blow bars with two dummy bars in a four-position rotor balances production efficiency with wear part costs. As active bars wear down to dummy bar level, worn bars become the new dummies while fresh bars are installed in the active positions.

Advanced Technologies and Future Developments

Ceramic Matrix Composites

Ceramic insert technology represents significant advancement in blow bar wear resistance. By embedding ceramic elements within martensitic or chrome steel matrices, manufacturers achieve wear characteristics substantially exceeding traditional metallurgies while maintaining adequate impact resistance. Applications involving medium feed sizes particularly benefit from ceramic composite technology.

Heat Treatment Optimization

Precise heat treatment protocols are essential for chrome steel blow bars to prevent brittleness while maximizing hardness. Temperature and annealing time parameters must be exactly controlled to achieve optimal material properties. Advanced manufacturers employ computer-controlled heat treatment processes to ensure consistent metallurgical characteristics throughout production runs.

Wear Monitoring Systems

Emerging technologies include embedded sensors and wear monitoring systems that provide real-time blow bar condition data. These systems enable predictive maintenance approaches, optimizing replacement timing and preventing unexpected failures that could damage crusher components.

Environmental and Safety Considerations

Dust Suppression During Maintenance

Blow bar replacement operations can generate dust and debris. Proper ventilation, dust collection systems, and personal protective equipment are essential during maintenance procedures. Modern crushing stations increasingly incorporate induced dust suppression covers and closed-loop circulation systems to minimize environmental impact.

Safe Handling Procedures

Blow bars are heavy components requiring proper lifting equipment and techniques. Safety protocols should address lockout/tagout procedures, proper personal protective equipment requirements, and clearance procedures before entering crusher chambers. Material blockages must be cleared before accessing blow bar assemblies to prevent rotor jamming and associated hazards.

Selecting the Right Blow Bar Supplier

Quality Assurance Standards

Reputable blow bar manufacturers provide detailed metallurgical specifications, heat treatment certifications, and dimensional tolerance guarantees. Quality documentation should include chemical composition analysis, hardness testing results, and impact resistance measurements. Suppliers like those at HT Wear Parts offer comprehensive technical support and application-specific recommendations to optimize blow bar selection.

Technical Support and Application Engineering

The best blow bar suppliers provide more than just components—they offer application engineering expertise to match materials to specific crushing requirements. This includes site assessments, wear pattern analysis, and recommendations for optimizing crusher settings to maximize blow bar life while maintaining production targets.

Conclusion: Maximizing Crusher Productivity Through Informed Blow Bar Selection

Crusher blow bars represent critical wear components that directly impact crushing efficiency, operational costs, and product quality. Understanding the metallurgical characteristics of different blow bar materials—from high manganese steel's work-hardening properties to high chrome's abrasion resistance and composite designs' advanced performance—enables informed selection decisions tailored to specific applications.

Implementing comprehensive maintenance protocols, including regular wear monitoring and strategic replacement timing, prevents costly rotor damage and minimizes unplanned downtime. The relationship between material properties, operational parameters, and application requirements demands careful analysis to achieve optimal cost-per-ton performance.
