Gyratory Crusher Parts: Complete Guide to Components, Maintenance, and Optimization

Gyratory crushers are essential machines in mining and quarrying operations, designed to crush large rocks and ores into manageable sizes for further processing. Understanding the various gyratory crusher parts, their functions, and maintenance requirements is crucial for maximizing equipment efficiency, minimizing downtime, and reducing operational costs. This comprehensive guide explores the critical components of gyratory crushers, wear patterns, maintenance strategies, and best practices for extending part lifespan.

Understanding Gyratory Crusher Components

A gyratory crusher consists of six primary components that work together to deliver efficient crushing performance. The main components include the base, main frame with concave liners, drive assembly, mantle, spider arm assembly, and lubrication system. Each part plays a vital role in the crushing process, and any failure or damage can result in costly downtime and repairs.

Primary Crushing Components

The crusher head represents the main component located at the top of the machine. Made from high-quality cast steel, it withstands tremendous loads and pressures generated during crushing operations. The cone-shaped head is lined with a mantle that protects it from wear and tear while delivering the crushing action.

The mantle and concave are the most critical wear parts in any gyratory crusher. The mantle receives the initial impact from material being crushed, moving in a gyrating motion to compress material against the stationary concave. Both components endure significant stress during operation, making their design and material composition vital for enhancing durability and wear resistance.

Essential Gyratory Crusher Parts and Their Functions

Mantle

The mantle serves as the moving crushing surface attached to the main shaft. As the eccentric assembly rotates, the mantle gyrates, creating the crushing action against the concave. Mantles experience the highest levels of abrasion and impact, requiring replacement when worn to 30-40% of their original thickness.

Concave (Bowl Liner)

The concave, also called the bowl liner, forms the stationary crushing surface attached to the upper frame. Shaped to facilitate efficient crushing, the concave works in tandem with the mantle to reduce material size. Concaves are typically made from high-quality alloys providing exceptional durability and resistance to wear.

Spider Assembly

The spider assembly supports the main shaft and houses the spider bushing, which requires careful monitoring. This component transfers crushing forces while allowing the necessary gyrating motion. Spider bushing clearance should be checked monthly or every 500 hours to avoid wear and damage.

Eccentric Assembly

The eccentric assembly generates the gyrating motion of the crusher head. It consists of the main shaft, eccentric shaft, pinion gear, and bevel gear. The eccentric shaft connects to the pinion gear, which meshes with the bevel gear connected to the drive assembly, creating the circular crushing motion.

Drive Assembly

The drive assembly transmits power from the motor to the crusher head. It includes the motor, pulley, belt, and sheave. When the motor rotates, it turns the pulley, which rotates the sheave connected to the eccentric assembly, generating the gyrating motion necessary for crushing.

Lubrication System

Proper lubrication is essential for gyratory crusher operation. The lubrication system maintains oil levels for bearings, bushings, and moving components, reducing friction and heat generation. Daily monitoring of lubrication levels and oil condition checks every 8 hours prevent premature wear.

Gyratory Crusher Parts Comparison Table

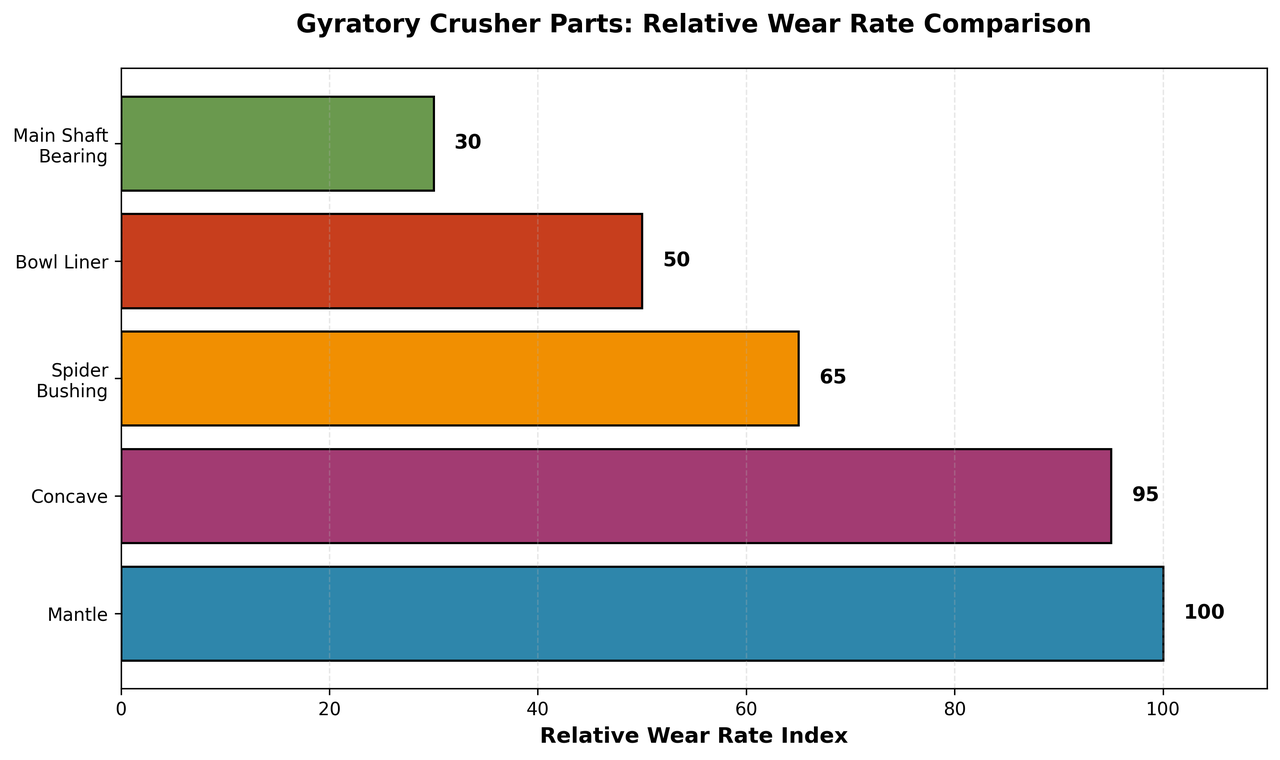

Wear Patterns and Replacement Indicators

Understanding wear patterns helps predict when gyratory crusher parts require replacement. Material hardness significantly impacts component lifespan, with harder feed materials like granite and iron ore accelerating wear compared to softer rocks like limestone.

Mantle and Concave Wear

Mantles and concaves experience progressive wear until crushing efficiency declines. In medium-duty applications processing moderately hard materials, a mantle and concave set might last 300-1000 hours. However, in demanding applications with hard granite or basalt, lifespan significantly drops to 100-200 hours.

• Reduced crushing performance with more oversized particles in the product

• Visible cracking or spalling on the crushing surfaces

• Wear to 30-40% of original thickness

• Metal contamination detected in lubrication oil analysis

• Increased vibration or unusual noise during operation

Most operations replace concaves and mantles every 6-12 months, though this varies greatly based on application.

Bowl Liner Replacement Schedule

Bowl liners undergo less direct wear than mantles, lasting between 200-800 hours depending on material abrasiveness. Regular inspection helps identify when replacement becomes necessary before complete failure occurs.

Main Shaft Bearing Longevity

Main shaft bearings typically last 5,000-10,000 operating hours when properly maintained. Warning signs requiring attention include unusual noise, excessive heat, oil contamination, or abnormal vibration patterns.

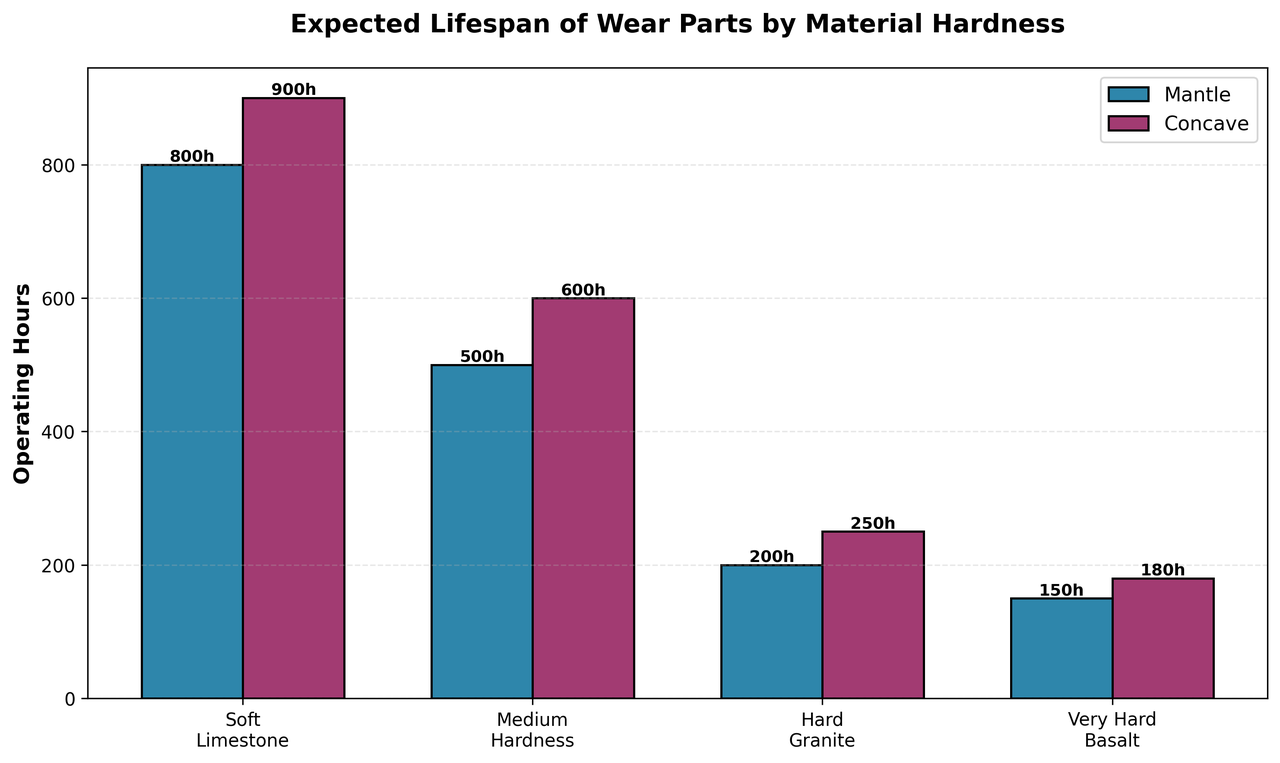

Material Hardness Impact on Part Lifespan

Maintenance Best Practices for Gyratory Crusher Parts

Implementing a comprehensive maintenance program significantly extends the lifespan of gyratory crusher parts and reduces operational costs.

Regular Inspection Schedule

Establish a proactive maintenance schedule including regular inspections of wear parts. Check for signs of wear, damage, or deterioration such as excessive wear patterns, cracks, or missing segments. Early detection allows for timely replacements or repairs, preventing further damage to the crusher and its components.

• Visual examination of mantle and concave wear

• Monitoring lubrication levels (maintaining oil about 1.4 inches above bushing flange)

• Checking for unusual vibration or noise

• Inspecting safety devices and hydraulic pressures

Monthly inspections require:

• Spider bushing clearance verification

• Oil analysis to detect contamination

• Bearing temperature monitoring

• Liner wear thickness measurement

Proper Installation and Adjustment

Ensuring wear parts are installed correctly and adjusted to manufacturer specifications prevents accelerated wear. Improper installation or misalignment can significantly reduce component lifespan. Follow recommended procedures including proper torque settings and alignment checks to maximize performance and durability.

Quality gyratory crusher parts from reputable manufacturers like HT Wear Parts ensure proper fit and optimal performance. Using the correct mantle for your crusher model prevents serious damage from incorrect parts.

Optimizing Crushing Parameters

Adjusting crushing parameters such as feed size, speed, and chamber settings optimizes the crushing process and reduces wear. Maintaining consistent and appropriate operating conditions helps minimize excessive wear and prolongs component lifespan. Keep feed size within 80-90% of the crusher's intake opening, as oversized rocks accelerate uneven wear.

Lubrication Management

Proper lubrication reduces friction, heat generation, and wear, extending the lifespan of wear components such as bearings, seals, and bushings. Follow lubrication schedules using compatible lubricants with "extreme pressure" additives for optimal protection. Change all oil at least once per year or according to oil analysis recommendations.

Wear Monitoring Systems

Utilizing wear monitoring systems and technologies tracks the condition of wear parts in real-time. These systems provide valuable data on wear rates, performance trends, and impending failures, allowing for proactive maintenance interventions. Regularly analyze wear data and adjust maintenance schedules or replacement intervals accordingly.

Gyratory Crusher Parts Maintenance Checklist

Selecting Quality Gyratory Crusher Parts

Choosing high-quality replacement parts ensures optimal crusher performance and longevity. When selecting gyratory crusher parts, consider these critical factors:

Material Composition

Manufacturing Standards

Supplier Reputation

Cost vs. Value Analysis

While premium parts may have higher initial costs, their extended lifespan and superior performance deliver lower total cost of ownership. Consider the complete lifecycle costs including replacement frequency, downtime, and productivity impacts.

Step-by-Step Replacement Procedure

Preparation Phase

• Schedule replacement during planned downtime to minimize production impact

• Order correct replacement parts verified for your crusher model

• Assemble necessary tools, lifting equipment, and safety gear

• Review manufacturer specifications for torque settings and clearances

Removal Process

• Safely shut down the crusher and lock out all energy sources

• Allow components to cool completely before beginning work

• Carefully remove worn mantle and concave, inspecting for unusual wear patterns

• Clean all mounting surfaces thoroughly, removing debris and old liner material

Installation Phase

• Position new concave ensuring proper alignment and seating

• Install new mantle according to manufacturer specifications

• Apply proper torque to all fasteners using calibrated equipment

• Verify liner clearance matches technical specifications

Final Testing

• Perform empty test run, listening for abnormal noises

• Gradually introduce material, monitoring crusher performance

• Check vibration levels and temperature during initial operation

• Verify product size meets specifications

Operator Training and Education

Providing comprehensive training to crusher operators on proper equipment operation, maintenance practices, and wear parts management contributes significantly to extending component lifespan. Knowledgeable operators identify potential issues early, operate equipment efficiently, and practice responsible usage that minimizes unnecessary wear.

• Understanding crusher operation principles and part functions

• Recognizing early warning signs of component wear or failure

• Proper startup and shutdown procedures

• Monitoring critical parameters during operation

• Basic troubleshooting and problem identification

• Safety protocols for maintenance activities

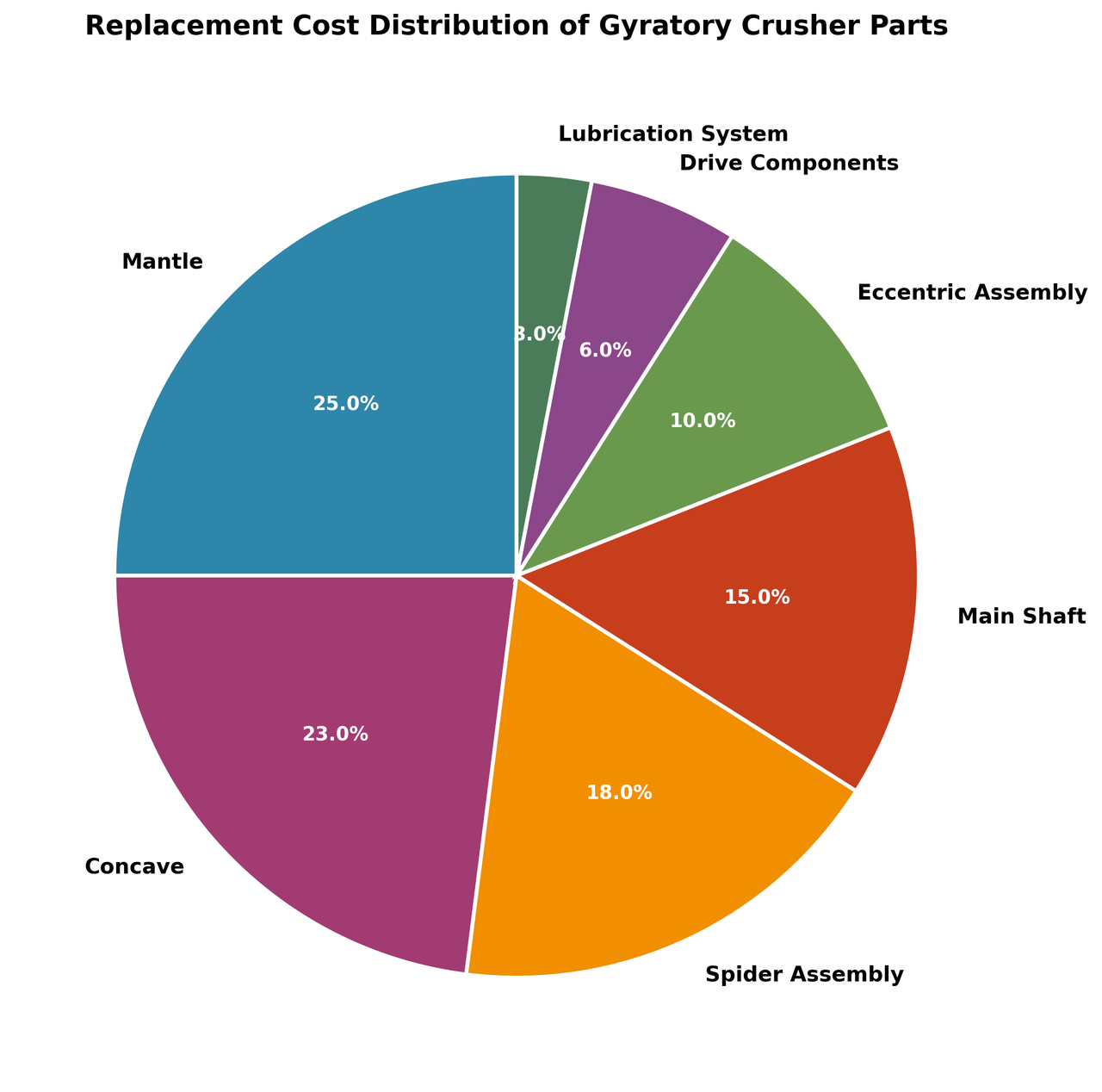

Cost Optimization Strategies

Managing gyratory crusher parts costs requires a balanced approach considering both initial investment and long-term value. Implement these strategies to optimize expenditures:

Predictive Maintenance

Inventory Management

Maintaining critical spare parts inventory ensures rapid replacement capability while avoiding excessive capital tied up in parts. Stock high-wear items like mantles and concaves while managing longer-life components on an as-needed basis.

Bulk Purchasing

Coordinating replacement schedules across multiple crushers enables bulk purchasing of parts, potentially reducing per-unit costs through volume discounts.

Performance Tracking

Documenting part performance including lifespan, tonnage crushed, and operating conditions provides valuable data for optimizing part selection and identifying improvement opportunities.

Common Problems and Solutions

Environmental Considerations

Modern operations increasingly focus on environmental responsibility in managing gyratory crusher parts. Consider these sustainable practices:

• Recycling worn manganese steel components through specialized metal recyclers

• Selecting parts with extended lifespans to reduce replacement frequency and waste

• Implementing condition-based maintenance to avoid premature replacement

• Working with suppliers offering parts remanufacturing programs

• Optimizing crusher settings to balance production efficiency with part longevity

Future Trends in Gyratory Crusher Parts

• Advanced alloy development incorporating titanium carbides and complex carbides for enhanced wear resistance

• IoT-enabled sensors providing real-time part condition monitoring

• 3D scanning technology for precise wear measurement and predictive modeling

• Improved heat treatment processes extending component lifespan

• Computer-aided design optimizing part geometry for specific applications

Conclusion

Understanding gyratory crusher parts, their functions, wear patterns, and maintenance requirements is essential for maximizing crusher performance and minimizing operational costs. The mantle, concave, spider assembly, and other critical components each play vital roles in efficient crushing operations. Implementing proactive maintenance programs, selecting quality replacement parts from reputable suppliers like HT Wear Parts, optimizing operating parameters, and training operators properly all contribute to extending part lifespan and improving overall crusher reliability.
