How to Select Durable Crusher Jaw Plates in 2025

Crusher jaw plates play a critical role in crushing operations by determining the efficiency and overall performance of your crusher. Selecting the right jaw plates ensures durability and reduces operational costs. In 2025, advancements in jaw plate technology have become more prominent due to the growing demand for improved materials and designs. For example, the Mandible Plating Systems market is projected to grow at a CAGR of 7.1%, reaching $2.3 billion by 2032. Such innovations highlight the importance of choosing jaw plates that align with modern production needs while maintaining durability and compatibility with your equipment.

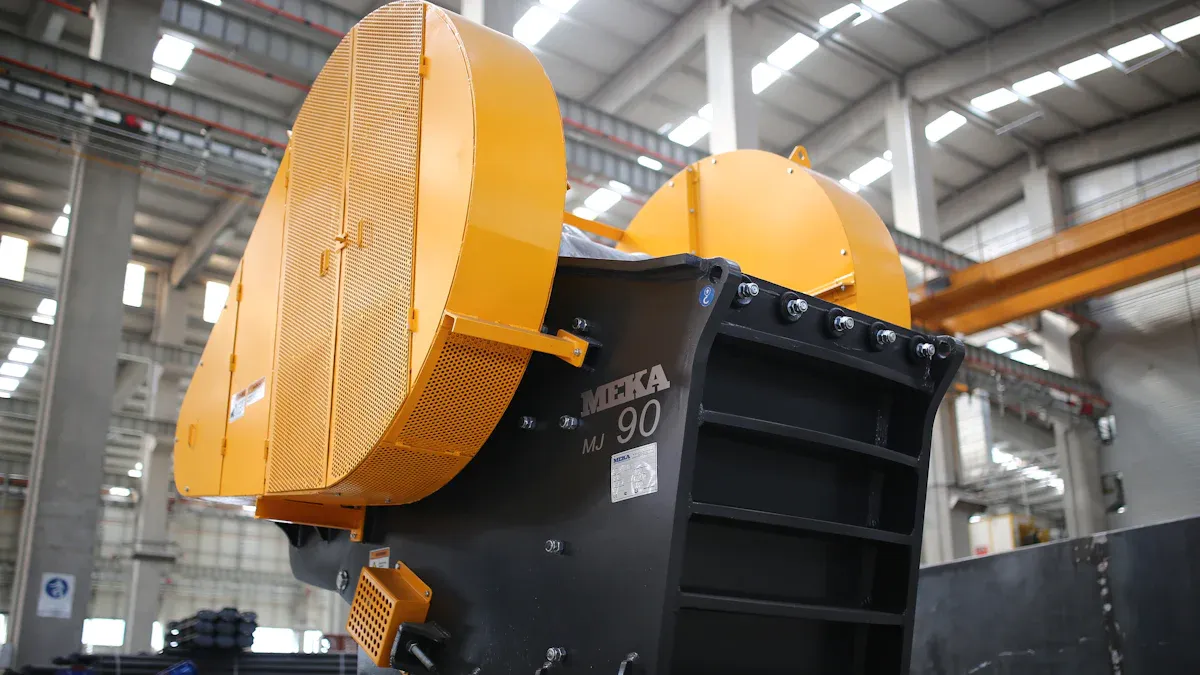

Understanding Crusher Jaw Plates

What Are Jaw Plates?

Jaw plates are critical components of a jaw crusher. They are the replaceable surfaces that come into direct contact with the material being crushed. These plates are typically made of durable materials like manganese steel, which can withstand the immense pressure and wear caused by crushing operations. A jaw crusher uses two plates—one stationary and one movable—to create a V-shaped chamber where the crushing occurs. The design of these plates, including features like corrugated surfaces, ensures efficient material fracturing with minimal energy consumption.

Importance of Jaw Plates in Jaw Crushers

Jaw plates play a vital role in maintaining the efficiency and longevity of your crusher. They directly influence the crushing performance by determining how effectively the material is broken down. For instance:
- G.F. Job Ltd used historical performance data to test new Optitooth jaw plates. This resulted in increased output from 200 to 250 tonnes per hour and extended wear life from 20,000-30,000 tonnes to 50,000-55,000 tonnes.
This example highlights how well-designed jaw plates can enhance both productivity and durability. Additionally, the material and design of the plates ensure that the crusher operates smoothly, reducing downtime and maintenance costs.

How Jaw Plates Impact Crushing Efficiency

The efficiency of a jaw crusher depends heavily on the quality and design of its jaw plates. Plates made from high-manganese steel, for example, offer a service life of 8,000–12,000 hours when used for hard materials like granite. Tungsten carbide-coated plates, on the other hand, provide superior wear resistance, making them ideal for crushing concrete waste. The table below summarizes key specifications of modern jaw plates:

By selecting the right jaw plates, you can optimize material output quality, reduce wear rates, and extend the overall lifespan of your crusher. This ensures consistent performance and cost savings over time.

Factors to Consider When Selecting Jaw Plates

Material Compatibility and Durability

Choosing the right material for jaw plates is essential for ensuring durability and optimal performance. The material must match the specific characteristics of the material being crushed. For example:
- For tough and abrasive substances like granite, high manganese steel or chrome iron alloy is ideal due to their superior wear resistance.
- For less abrasive materials, cost-effective options like carbon steel may suffice.

Material compatibility also plays a significant role in extending the lifespan of jaw plates. Studies show that manganese steel, commonly used in general-purpose applications, can withstand up to 50,000–70,000 tons before replacement. Chrome iron alloy offers a 30% longer lifespan in abrasive environments, while ceramic-enhanced plates reduce wear by 45% in high-silica operations.

When selecting jaw plates, consider the crusher model's requirements. Using incompatible materials can lead to rapid wear and reduced efficiency. Always evaluate your operational conditions and consult with reputable suppliers to ensure you choose the most suitable material for your application.

Crusher Configuration and Design

The design and configuration of your crusher significantly affect the performance and wear life of jaw plates. Key design parameters include:

For example, a larger feed opening allows the crusher to handle bigger materials, reducing the need for pre-processing. The closed-side setting (CSS) determines the final output size and ensures efficient crushing. Additionally, the design of jaw plates, such as corrugated surfaces or two-piece construction, can enhance material fracturing and reduce energy consumption.

When selecting jaw plates, ensure they are compatible with your crusher's configuration. Poorly designed plates can lead to uneven wear patterns, reduced efficiency, and increased maintenance costs. Opt for plates engineered to withstand demanding conditions and contribute to longer wear life.

Production Needs and Wear Patterns

Your production requirements and wear patterns should guide your choice of jaw plates. High production demands often require jaw plates with enhanced durability and wear resistance. For instance, using titanium carbide-reinforced plates in extreme conditions can significantly extend wear life, though they may come at a higher cost.

Wear studies can help you identify the most suitable jaw plates for your operation. These studies involve analyzing real-world data, such as feed and discharge information and throughput rates. Proper selection of wear parts can lead to wear life improvem ents of 50% to 300%, as documented in various case histories.

Additionally, understanding wear patterns is crucial for optimizing performance. Uneven wear can reduce crushing efficiency and increase downtime. Regularly monitor wear patterns and adjust your selection as needed to maintain consistent performance and profitability.

By aligning your jaw plate selection with your production needs and wear patterns, you can enhance the overall efficiency of your crusher and reduce operating costs.

Cost vs. Performance Considerations

When selecting jaw plates for your crusher, balancing cost and performance is essential. You want to ensure that the plates provide long-lasting durability without exceeding your budget. Making the right choice can significantly impact your operational efficiency and overall expenses.

1. Initial Cost vs. Long-Term Value

Cheaper jaw plates may seem appealing at first glance. However, they often wear out faster, leading to frequent replacements. This increases downtime and maintenance costs. High-quality plates, while more expensive upfront, tend to last longer and require fewer replacements. For example, manganese steel plates, known for their durability, can handle up to 70,000 tons of material before needing replacement. Investing in such materials can save you money in the long run.

2. Matching Plates to Your Crusher

Not all jaw plates are compatible with every jaw crusher. Using incompatible plates can lead to uneven wear, reduced performance, and higher costs. Always choose plates designed specifically for your crusher model. This ensures optimal crushing efficiency and minimizes unnecessary expenses.

3. Evaluating Wear Resistance

Wear resistance plays a critical role in determining the lifespan of jaw plates. Materials like chrome iron alloy or ceramic-enhanced plates offer superior wear resistance, especially in abrasive environments. While these options may cost more, they reduce wear-related downtime and improve overall performance. For operations dealing with hard materials like granite, investing in wear-resistant plates is a smart choice.

4. Considering Production Demands

Your production needs should guide your decision. If your operation requires high output, opt for jaw plates that can handle heavy loads without compromising performance. Titanium carbide-reinforced plates, for instance, are ideal for high-demand environments. Although they come at a premium price, their durability and efficiency make them a cost-effective solution for large-scale operations.

5. Total Cost of Ownership

When evaluating jaw plates, consider the total cost of ownership. This includes the initial purchase price, maintenance expenses, and the cost of downtime due to replacements. Plates with advanced features, such as wear monitoring technology, may have a higher upfront cost but can save you money by reducing unexpected failures and improving operational efficiency.

Tip: Always consult with your supplier to understand the expected lifespan and performance of the jaw plates you’re considering. This helps you make an informed decision that aligns with your budget and operational goals.

By carefully weighing cost against performance, you can select jaw plates that meet your needs without overspending. This approach ensures that your crusher operates efficiently, reducing long-term expenses and maximizing productivity.

Advancements in Jaw Plate Technology for 2025

Innovative Materials for Enhanced Durability

In 2025, advancements in material science have revolutionized the durability of jaw plates. Manufacturers now use cutting-edge materials to create plates that withstand extreme conditions and extend their lifespan. These materials include high manganese steel, low alloy wear-resistant steel, and composite wear-resistant plates. Each material offers unique benefits tailored to specific crushing needs.

For example, high manganese steel hardens under impact, making it perfect for crushers handling abrasive materials. Composite plates, with ceramic particles embedded in a steel base, combine toughness and wear resistance. These innovations ensure your jaw plates last longer, reducing downtime and maintenance costs.

Precision Manufacturing Techniques

Precision manufacturing has transformed how jaw plates are produced. Techniques like selective laser melting (SLM) allow manufacturers to create plates with unmatched accuracy. This method involves melting metal powder layer by layer to form complex shapes. It ensures that jaw plates fit perfectly into your crusher, enhancing performance and reducing wear.

Researchers have also used SLM to produce custom plates for jaw reconstruction in medical applications. These plates match the geometry and stiffness of natural bone, reducing complications. In the context of crushers, this precision translates to better alignment, improved crushing efficiency, and longer-lasting jaw plates.

Other techniques, such as CNC machining and robotic welding, further enhance the quality of jaw plates. These methods ensure consistent production standards, minimizing defects and maximizing durability. By choosing jaw plates made with precision manufacturing, you can achieve better results and lower operational costs.

Smart Jaw Plates with Wear Monitoring Features

Smart technology has entered the world of jaw plates, offering real-time wear monitoring and predictive maintenance. Modern plates now integrate sensors that track wear, temperature, and other critical parameters. This data helps you identify issues before they lead to costly breakdowns.

For instance, dielectric elastomer sensors (DES) measure torque, rotational speed, and temperature in real time. These sensors improve performance by providing actionable insights. Their space-neutral design allows you to integrate them into existing systems without modifications.

Smart jaw plates not only enhance efficiency but also reduce downtime. By monitoring wear patterns, you can replace plates at the right time, avoiding unexpected failures. This technology ensures your crusher operates smoothly, saving you time and money.

How to Maintain and Replace Jaw Plates

Regular Inspection and Wear Monitoring

Regular inspections are essential for maintaining the efficiency of your crusher. By monitoring wear and identifying issues early, you can prevent costly downtime. Focus on key areas during inspections, such as the jaw plates, toggle plates, and lubrication systems. Use wear monitoring technology, like sensors, to track real-time data. These sensors can be placed in high-wear areas to provide insights into the condition of your equipment.

Here’s a checklist to guide your inspection process:

By following this checklist, you can extend the lifespan of your jaw plates and maintain consistent crusher performance.

Proper Installation and Alignment

Proper installation and alignment of jaw plates are critical for efficient crushing operations. Misaligned plates can cause uneven wear, reducing their lifespan and affecting the crusher's performance. When installing new plates, ensure they fit securely and align perfectly with the crusher's frame. Use the manufacturer’s guidelines to achieve the correct positioning.

Check the alignment of the eccentric shaft and frame regularly. Misalignment can lead to excessive wear on the jaw plates and other components. Tighten all fasteners securely to prevent vibrations that may loosen the plates during operation. Proper installation and alignment not only improve efficiency but also reduce the need to replace jaw plates frequently.

Best Practices for Cleaning and Maintenance

Keeping your crusher clean is vital for optimal performance. Dirt and debris can accumulate in critical areas, leading to wear and reduced efficiency. Regularly clean the toggle area and wash out toggle seats and plates to prevent material buildup. Remove dirt from the crusher frame and surrounding areas to avoid contamination.

Follow these best practices for effective maintenance:
- Maintain cleanliness in oil systems to prevent contamination.
- Use clean buckets and rags during oil changes.
- Conduct periodic oil analysis to monitor machine condition.
- Monitor discharge chutes for obstructions and material buildup under the jaw.
- Schedule preventive maintenance tasks as recommended by the manufacturer.

Document all maintenance activities for future reference. Keeping detailed records helps you track wear patterns and plan replacements effectively. By adopting these practices, you can ensure your crusher operates smoothly and efficiently.

When and How to Change Jaw Plates

Knowing when and how to change jaw plates is crucial for maintaining your crusher's efficiency. Regular monitoring of wear patterns helps you determine the optimal time for replacement. Ignoring worn plates can reduce crushing efficiency and increase operational costs.

When to Replace Jaw Plates

You should replace jaw plates when wear reaches a critical level. Monitoring wear patterns ensures you maintain consisten t performance. Look for these indicators:
- Uneven wear across the plate surface.
- Reduced crushing efficiency or output.
- Visible cracks or fractures in the plates.

Regular inspections help you identify these signs early. Use wear monitoring technology to track real-time data and plan replacements effectively.

How to Change Jaw Plates

Changing jaw plates requires careful preparation and execution. Follow these steps to ensure a smooth replacement process:
1. Turn off the crusher and disconnect the power supply.
2. Remove the worn plates by loosening the securing bolts. Use appropriate tools to avoid damaging the crusher.
3. Clean the mounting surfaces to remove debris and ensure proper alignment.
4. Install the new plates, aligning them with the crusher's frame. Tighten the bolts securely to prevent movement during operation.
5. Test the crusher to ensure the new plates function correctly.

Tip: Always consult the manufacturer's guidelines for specific instructions on replacing jaw plates. Proper installation ensures optimal performance and extends the lifespan of your equipment.

By replacing jaw plates at the right time and following the correct procedure, you can maintain your crusher's efficiency and reduce downtime. Regular maintenance and timely replacements keep your operations running smoothly.

Durable crusher jaw plates are essential for maintaining efficient and cost-effective crushing operations. Selecting the right plates involves evaluating material compatibility, crusher design, and production needs. For example, proper feed gradation and controlled feed rates ensure consistent performance and prevent overload. Regular maintenance, such as proactive inspections and lubrication, reduces downtime and operational costs.

Technological advancements in 2025, like smart jaw plates with wear monitoring, offer improved durability and performance. The global demand for advanced jaw plates continues to grow, driven by industries like mining and construction. By prioritizing timely replacements and adopting modern technologies, you can maximize the lifespan of your equipment and enhance productivity.

FAQ

What is the best material for crusher jaw plates?

The best material depends on your application. High manganese steel works well for general use due to its durability. For abrasive materials like granite, chrome iron alloy or ceramic-enhanced plates offer better wear resistance. Always match the material to your crushing needs.

How often should you inspect jaw plates?

Inspect jaw plates weekly or after every 40 hours of operation. Regular checks help you spot wear early, ensuring consistent performance. Use wear monitoring tools for real-time updates and to plan replacements effectively.

Can you reuse worn jaw plates?

No, reusing worn jaw plates reduces crushing efficiency and risks equipment damage. Always replace them with new, compatible plates to maintain optimal performance. Consult your supplier for recycling options for old plates.

How do you extend the lifespan of jaw plates?

Follow these tips:
- Use proper feed gradation.
- Avoid overloading the crusher.
- Perform regular maintenance, including cleaning and lubrication.
- Monitor wear patterns and replace plates on time.

Tip: Choose high-quality plates designed for your crusher model to maximize durability.

Are smart jaw plates worth the investment?

Yes, smart jaw plates with wear monitoring features reduce downtime and improve efficiency. They provide real-time data, helping you plan maintenance and avoid unexpected failures. While they cost more upfront, they save money in the long run by extending plate life and minimizing disruptions.
