Advanced 3D Sand Printing Technology at Haitian Casting

As the construction machinery and wear-resistant casting industries continue to demand higher precision, shorter lead times, and more complex component structures, conventional foundry processes can no longer fully meet modern manufacturing requirements.

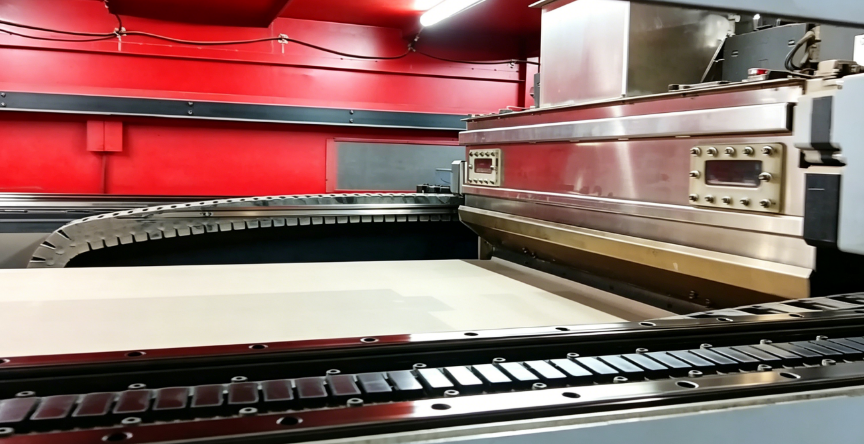

To further strengthen its intelligent manufacturing capabilities, Haitian Casting has introduced four advanced 3D sand printing machines, significantly upgrading production efficiency and casting quality.

What Is 3D Sand Printing Technology?

3D sand printing is an advanced additive manufacturing technology widely used in the foundry industry. Unlike traditional wooden patterns or manual molding processes, 3D sand printing directly produces complex sand molds and sand cores from CAD digital models.

The process adopts industrial binder jetting technology, in which layers of sand are selectively bonded layer by layer to create highly precise casting molds without the need for conventional tooling.

Main Technical Parameters

• Printing Layer Thickness: 0.3mm–0.5mm

• Dimensional Accuracy: ±0.3mm

• Maximum Printing Size: Large-format molds up to 4000mm

• Applicable Sand Type: Furan Resin Sand

• Supported File Formats: STL / CAD 3D Models

• High mold strength suitable for large wear-resistant castings

Advantages of 3D Sand Printing

Shorter Production Lead Time

Traditional pattern manufacturing may require several days or even weeks. With 3D sand printing, molds can be produced directly from digital drawings, greatly reducing production cycles.

Compared with conventional casting methods:

• Prototype development time reduced by over 50%

• No tooling required for small-batch production

• Faster new product development and trial production

Haitian Casting can provide rapid sample development and shorter delivery times for global customers.

More Complex Structural Design

3D printing technology enables the production of highly complex internal geometries that are difficult to achieve with traditional molding methods, including:

• Irregular flow channels

• Hollow structures

• Deep cavity sand cores

• Integrated complex mold structures

This technology is especially suitable for:

• Concrete batching plant mixing blades and liner plates

• Asphalt mixing plant wear parts

• Crusher blow bars

• High chrome mining castings

Higher Dimensional Accuracy

Printed sand molds provide excellent dimensional consistency and surface finish, effectively improving casting precision while reducing machining costs.

Technical advantages include:

• Better dimensional consistency

• Improved surface quality

• Reduced machining allowance

• Reduced casting defects such as porosity and mold mismatch

Lower Tooling Costs

Since physical tooling and wooden patterns are not required, customers can significantly reduce development costs, especially for:

• OEM customized parts

• Multi-specification products

• Small-volume orders

• New product development

Haitian Casting Intelligent Manufacturing Upgrade

Haitian Casting has invested in four advanced 3D sand printing machines to improve production flexibility and manufacturing efficiency.

Combined with:

• DISA vertical molding lines

• Lost foam casting process

• Medium-frequency induction melting furnaces

• Fully automated heat treatment systems

• CNC machining centers

• Spectrometer and metallographic inspection equipment

Haitian Casting has established a complete intelligent foundry manufacturing system.

Production Capacity

• Annual Production Capacity: 60,000 Tons

• Heat Treatment Capacity: 20 Tons per Furnace

• Maximum Single Casting Weight: 5 Tons

• Fastest Delivery Time: 7 Days

The company continuously provides high-quality wear-resistant solutions for industries including:

• Concrete batching plants

• Asphalt mixing plants

• Mining machinery

• Metallurgical equipment

• Construction machinery

Strict Quality Control System

Haitian Casting strictly implements the ISO 9001 quality management system and is equipped with advanced inspection equipment, including:

• ARL2460 Direct Reading Spectrometer

• WFW-600 Universal Material Testing Machine

• JB300B Impact Testing Machine

• Metallographic Analysis Equipment

• Hardness Testing Equipment

All products undergo 100% final inspection to ensure stable and reliable performance.

Supporting Faster Global Delivery

With advanced 3D sand printing technology, Haitian Casting can accelerate product development and shorten manufacturing lead times, helping customers reduce downtime and improve equipment operating efficiency.

Today, Haitian Casting products are exported to more than 25 countries and regions worldwide.

Your Wear Parts Solutions Partner

As a professional manufacturer of wear-resistant castings, Haitian Casting continues to invest in advanced manufacturing technologies and intelligent production systems.

Through continuous innovation, we are committed to providing more durable, reliable, and cost-effective wear parts solutions for global customers.
