Ceramic Ball Mill Liner Solution | Advanced Wear-Resistant Ceramic Liners for Cement Mills and Mining Wet Grinding Applications

During mineral grinding operations, the ball mill liner is one of the critical wear components that directly affects equipment efficiency, maintenance frequency, and overall operating costs. The liner continuously withstands impacts from grinding media, abrasion from mineral particles, and intensive friction during operation. Therefore, its wear resistance plays an important role in determining equipment service cycles and production stability.

To meet the increasing demands of modern cement grinding and mining wet grinding systems for longer service life, reduced maintenance, and improved operational efficiency, Haitian Casting provides advanced ceramic ball mill liner solutions.

The solution adopts high-performance wear-resistant ceramic materials and is developed based on a ball mill system optimization approach. Through optimized liner material selection, structural design, grinding media matching, and operating parameter adjustment, the system helps achieve longer operating cycles, reduced maintenance requirements, and more stable grinding performance.

Superior Wear Resistance: Mohs Hardness up to 9 for Excellent Abrasion Resistance

One of the key advantages of ceramic liners is their extremely high hardness and excellent resistance to abrasive wear.

High-performance alumina ceramic materials can achieve a Mohs hardness of up to 9, approaching the hardness level of diamond. This enables ceramic liners to effectively resist continuous abrasion caused by cement clinker, mineral particles, and grinding media.

Compared with traditional metal liners, ceramic materials maintain a more stable surface structure under high-abrasion conditions, reducing thickness loss caused by long-term wear and extending liner service cycles.

Material Hardness Comparison

With hardness close to diamond-level materials, ceramic liners are particularly suitable for cement mills, mining wet grinding mills, and other applications where abrasive wear is the primary failure mechanism.

It should be noted that ceramic materials provide excellent hardness and abrasion resistance, but proper application evaluation is required according to impact conditions. For high-impact grinding environments involving large grinding balls or coarse grinding stages, suitable ceramic structures or ceramic-metal composite solutions should be selected based on actual operating conditions.

Lightweight Ceramic Design Reduces Equipment Load

In addition to outstanding wear resistance, Haitian ceramic liners provide significant lightweight advantages.

Due to the lower density of alumina ceramics compared with steel, optimized ceramic liner structures can significantly reduce the overall liner system weight.

Compared with traditional steel liners, lightweight design provides several benefits:

· Reduced mill operating resistance;

· Lower driving load on equipment;

· Reduced energy consumption per ton of product;

· Improved operating efficiency;

· Easier installation and maintenance.

For large cement mills and mining grinding systems, reducing liner weight can improve equipment economy while also lowering long-term maintenance costs.

Extended Service Life: Verified by Industrial Applications

Ceramic liners have not only been validated through material performance testing but have also been proven through long-term industrial applications in cement grinding and mining wet grinding projects.

Under suitable operating conditions, ceramic liners can significantly extend service intervals.

Cement Mill Applications:

· In certain low-impact and high-abrasion grinding conditions, ceramic liners can achieve service periods exceeding 10 years;

· Through proper material selection, structural optimization, and operating condition matching, longer operating cycles can be achieved.

Compared with conventional steel liners, ceramic liners help reduce equipment shutdown frequency and maintenance requirements.

Actual project experience demonstrates:

· Reduced liner inspection and replacement frequency;

· Significantly lower maintenance workload;

· Improved continuous operation stability.

Mining Wet Grinding Applications:

In high-hardness ore grinding environments, ceramic liners maintain stable performance under continuous abrasive conditions.

Application benefits include:

· Extended liner replacement cycles;

· Reduced spare parts consumption;

· Reduced maintenance downtime;

· Improved production continuity.

Long-term operating results demonstrate that ceramic liners provide excellent reliability and durability when properly matched with suitable grinding conditions.

Proven Industrial Application Cases

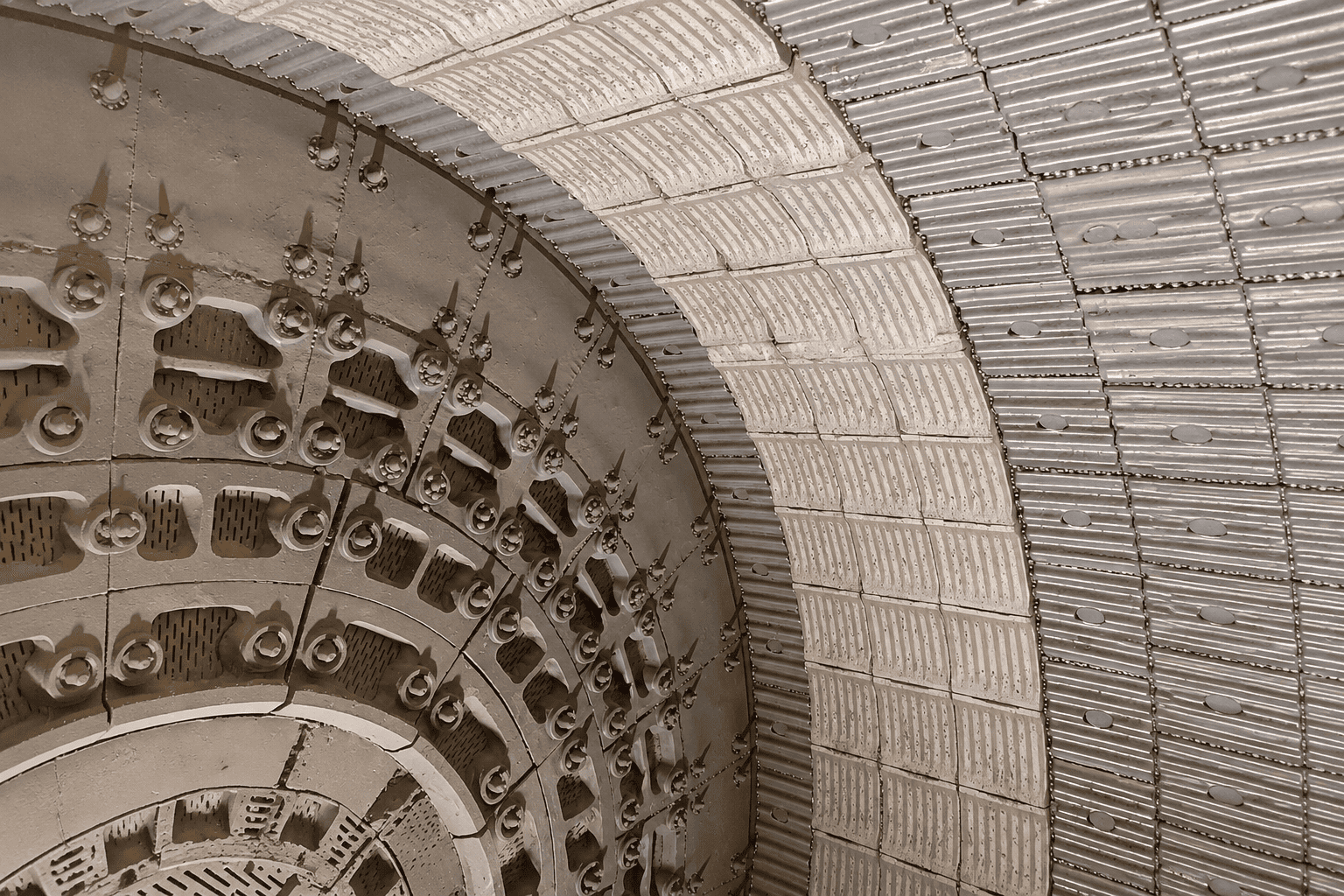

Case 1: 4.2 × 13m Cement Mill Application Verification

In a large cement production plant, a 4.2 × 13m cement mill adopted a ceramic liner combined with metal grinding media solution.

Operating Conditions:

· Equipment size: 4.2 × 13m cement mill

· Installation period: 200 days

· Actual accumulated operating time: 110 days

Application Performance:

During the operation evaluation period, the ceramic liner and metal grinding ball combination maintained good operating conditions. No abnormal damage was observed, and overall wear remained stable while maintaining effective grinding performance.

This application case demonstrates that ceramic liner solutions provide excellent wear resistance and operational stability for large-scale cement grinding equipment.

Case 2: Long-Term Application Verification on 3.8 × 13m Cement Mill

On another 3.8 × 13m cement mill, the ceramic liner solution has achieved stable long-term operation.

Long-term operating results show:

· Stable overall liner performance;

· Reduced inspection and maintenance frequency;

· Extended continuous operating periods;

· Optimized overall maintenance costs.

This long-term application performance demonstrates the durability and economic value of ceramic liners in large industrial grinding equipment.

Through continuous operating data analysis, it has been proven that ceramic liner performance is closely related to mill specifications, material characteristics, grinding media configuration, and operating parameters.

Haitian provides customized liner designs based on different working conditions to ensure optimal matching between liner performance and equipment requirements.

Overall Optimization Based on Ball Mill System Engineering

Haitian Casting does not simply replace traditional liner materials. Instead, we optimize the entire grinding system based on the operating principles of ball mills.

Through comprehensive analysis of mill structure, operating parameters, grinding media, and material characteristics, ceramic liners are integrated with the overall grinding process to achieve improved system performance.

System optimization includes:

· On-site working condition analysis;

· Liner structure and installation design;

· Ceramic material selection and performance matching;

· Grinding media optimization;

· Mill operating parameter adjustment.

By properly matching ceramic liners with metal grinding balls and optimizing operating conditions, the grinding system can achieve improved grinding efficiency and more stable operation.

According to performance data from selected projects:

Production Improvement

After comprehensive optimization involving liner design, grinding media adjustment, and operating parameter optimization, some projects have achieved increased production capacity.

Energy Saving Performance

Due to the lightweight characteristics of ceramic liners and improved grinding system performance, some projects have achieved reductions in energy consumption per ton of product.

The actual improvement range depends on the original equipment condition, material characteristics, system configuration, and optimization scope. Performance results may vary between different applications.

Long-Term Economic Value of Ceramic Liners

Although ceramic liners are manufactured using advanced wear-resistant materials and may require a higher initial investment compared with traditional steel liners, their lifecycle economic value is more significant.

Customers can benefit from:

· Longer liner operating cycles;

· Reduced equipment shutdown frequency;

· Lower spare parts consumption;

· Reduced maintenance labor requirements;

· Improved production continuity;

· Lower overall operating costs per ton of product.

The true value of ceramic liners is not only reflected in the initial purchase cost, but also in the long-term reduction of maintenance costs, downtime losses, and production instability.

Why Choose Haitian

Haitian Casting provides professional ceramic ball mill liner solutions for global cement and mining industries.

Our advantages include:

· Advanced wear-resistant ceramic material application experience;

· Extensive industrial wear-part manufacturing experience;

· Cement mill and mining wet grinding application expertise;

· Ball mill system optimization capabilities;

· On-site measurement and technical support;

· Customized liner solutions based on specific operating conditions.

Haitian provides more than ceramic liner products. We focus on the overall grinding system performance and deliver reliable wear solutions through optimized material selection, structural design, and application engineering.

Conclusion

Ceramic ball mill liners represent an important technological upgrade from traditional metal liners.

With high-performance ceramic materials featuring Mohs hardness up to 9, lightweight structural advantages, and proven industrial application experience, Haitian ceramic liners help customers achieve longer operating cycles, reduced maintenance requirements, and more stable grinding system performance.

By combining ceramic liner technology with ball mill system optimization, customers can achieve:

· Extended liner service cycles in cement mill applications;

· Stable wear performance in mining wet grinding environments;

· Reduced maintenance and downtime;

· Improved equipment operating stability;

· Optimized overall production costs.

Haitian Casting is committed to providing reliable, efficient, and cost-effective wear-resistant solutions for global cement and mining customers.
