Background

In modern concrete pumping systems, elbow pipes are the most critical wear components. Their failure not only interrupts operations but also significantly increases maintenance costs and project delays.

As construction projects evolve toward:

* Higher pumping pressure

* Longer vertical and horizontal distances

* More abrasive concrete mixes

Traditional elbow pipe solutions are no longer sufficient.

Core Problem Analysis

Why Elbow Pipes Fail Faster Than Straight Pipes?

The wear mechanism of elbow pipes is fundamentally different:

When concrete flows through a bend:

* Centrifugal force drives aggregates toward the outer wall

* Impact + sliding abrasion occurs simultaneously

* Localized wear zones form rapidly

👉 This results in uneven wear and premature failure

Limitations of Conventional Solutions

Single-Layer Steel Structure

Traditional elbow pipes rely on a single material to handle:

Structural load / Wear resistance

This creates a contradiction:

👉 No single material can fully satisfy both.

Haitian Dual-Layer Solution

Engineering-Level Upgrade, Not Just Material Change

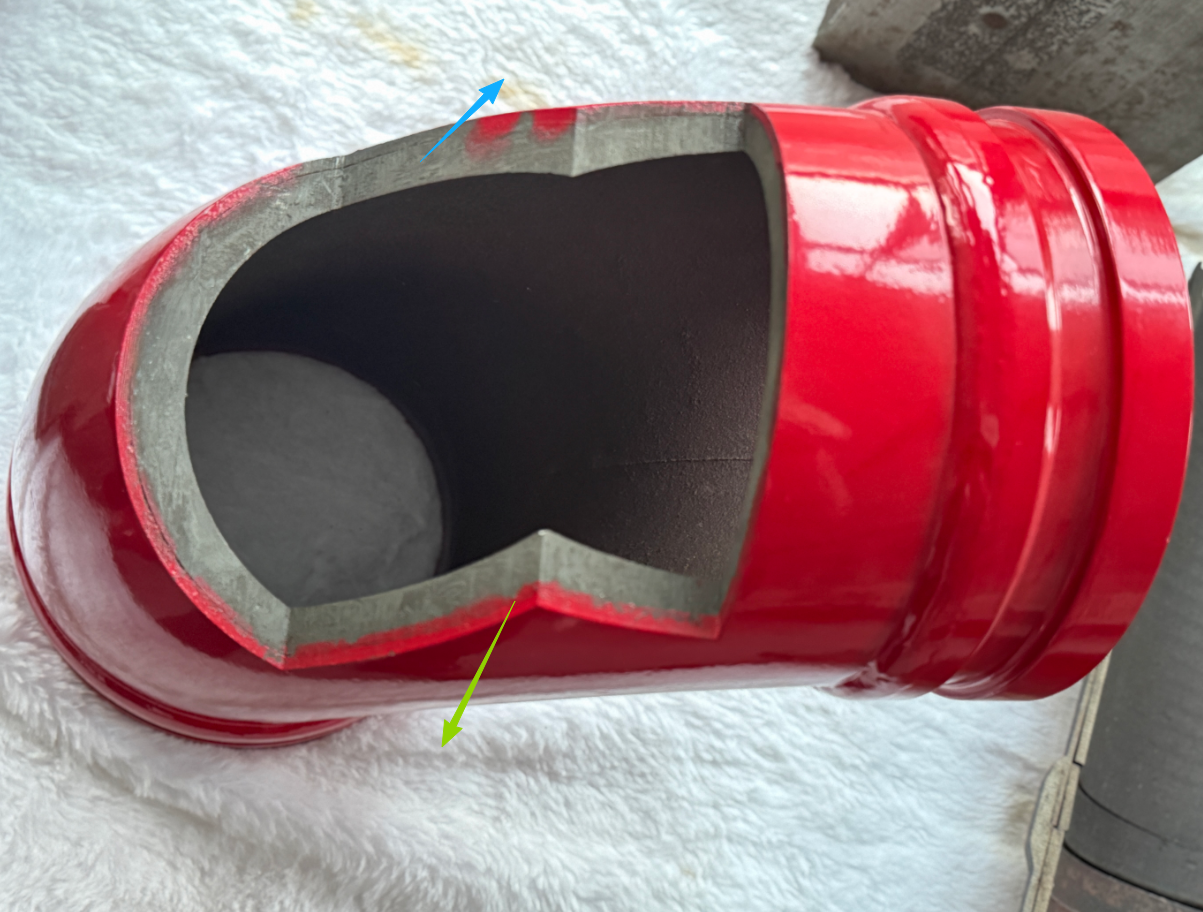

Haitian Casting introduces a dual-layer composite structure, separating functions at the design level:

✅ Outer Layer – Structural Support

• Material: Q235 / Q345 steel

• High ductility and impact resistance

• Ensures pipe integrity under high pressure

✅ Inner Liner – Wear Resistance Core

• Material: High Chromium Cast Iron

• Microstructure: Cr₇C₃ carbides

• Extremely high hardness

👉 This design fundamentally solves the wear problem

Material Science Advantage

Why High Chromium Cast Iron Works

High chromium cast iron provides:

Superior resistance to abrasive wear

Excellent performance under impact + sliding conditions

Stable microstructure under high stress

Performance Comparison

Custom Engineering Approach

We do not offer “standard products only”.

Each elbow pipe is optimized based on:

• Pump brand (Zoomlion, SANY, Putzmeister, etc.)

• Pumping pressure

• Pipeline layout

• Concrete mix design

• Aggregate hardness & size

Economic Value

How Much Can You Save?

By using dual-layer elbow pipes:

• Reduce replacement frequency

• Minimize downtime

• Lower labor & maintenance costs


Cost per m³ Reduction

Even if initial cost is higher:

👉 Total cost per cubic meter is significantly lower

Why Choose Haitian Casting

• ✔ First manufacturer in China to mass-produce dual-layer elbow pipes

• ✔ 20+ years of casting experience

• ✔ Advanced wear-resistant material technology

• ✔ Strict quality control system

• ✔ Exported to global markets

Conclusion

The shift from single-layer to dual-layer elbow pipe design is not just an upgrade—it is a fundamental breakthrough in wear-resistant engineering.

Haitian Casting provides solutions that are:

• More durable

• More reliable

• More cost-effective
